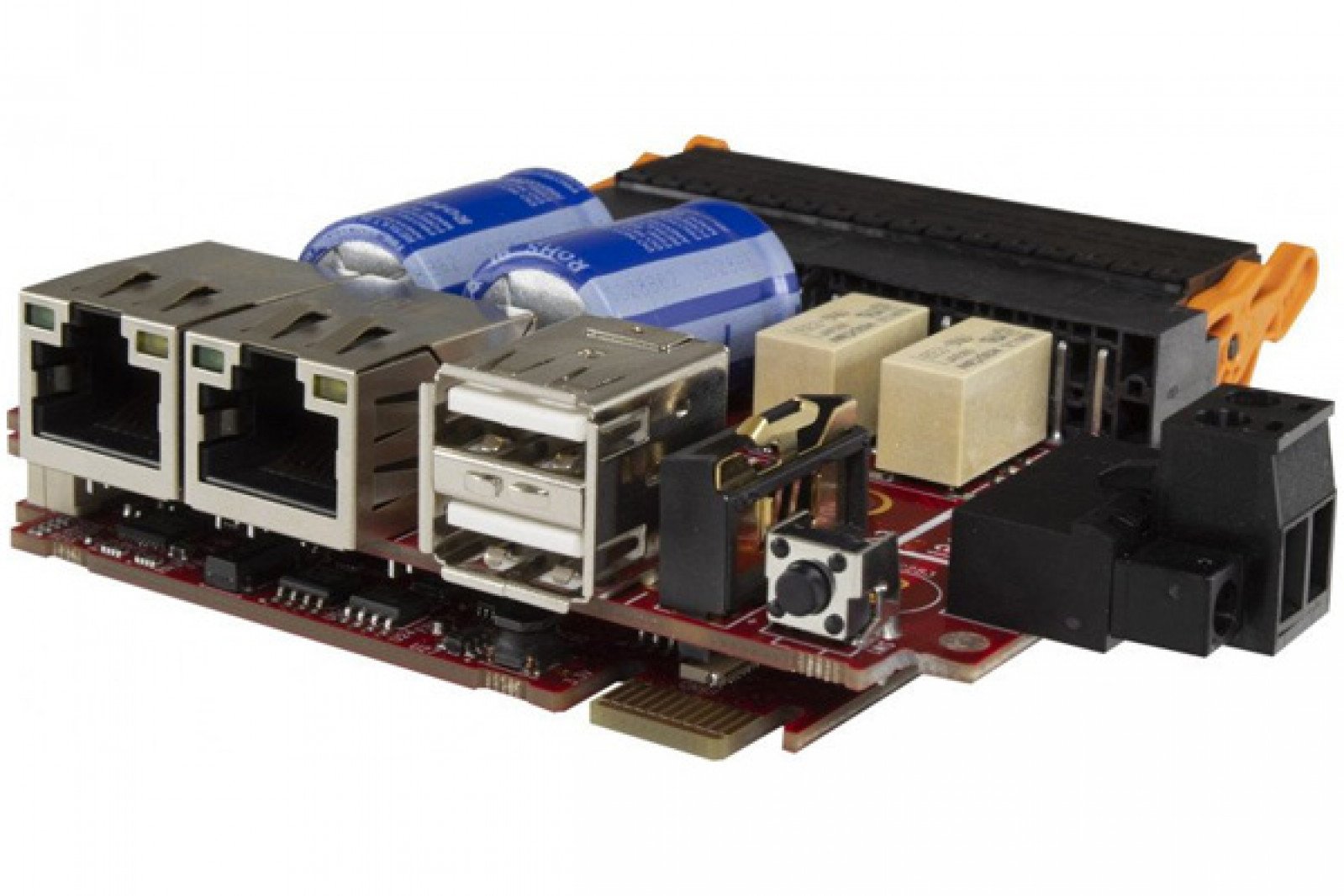

TS-7100-Z

Feature Dense Embedded Solution, Opt. 2.8” Touch Screen

Lifecycle: Concept Design | Released: TBA | RoHS Compliant

A full featured, compact embedded computer with optional 2.8" touch LCD and DIN-mountable enclosure that measures 2.4" by 3.6" by 1.7". It packs in industry standard interfaces including Ethernet, USB, RS-232, RS-485, and CAN, and bunch of I/0.

  • Supports graphical HMI requirements with the 2.8" touch panel LCD
  • Small footprint and DIN-mountable enclosure for tight and secure installs
  • Robust TS-SILO option provides up to 30 seconds of hold up power
  • Connected with Dual Ethernet, WiFi, Bluetooth, NimbeLink/Digi socket
Call us

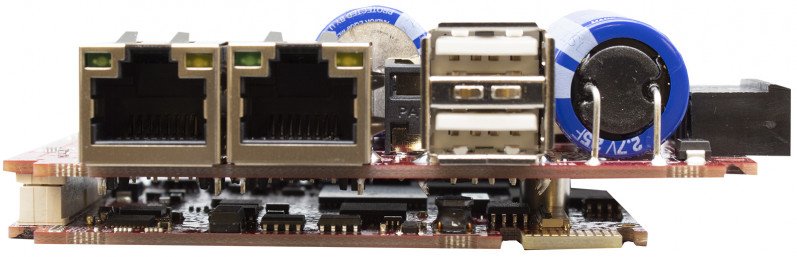

Make it Smaller

Time and again at customer visits, Technologic Systems heard the same thing, "We love your single board computers, but make them smaller! They have to go inside this cabinet, and we need room for everything!" We listened. Technologic Systems is proud to introduce the TS-7100-Z, our smallest single board computer in an optional DIN-mountable enclosure that measures 2.4" by 3.6" by 1.7", powered by the ARM iMX6 UltraLite CPU. It ships with industry-standard interfaces, including Ethernet, USB, RS-232, RS-485, and CAN. For wireless connectivity, the TS-7100-Z comes with WiFi and Bluetooth module, as well as a NimbeLink/Digi cellular modem and mesh network socket.

With all of these features packed into a smaller footprint, not only will the TS-7100-Z fit in your cabinet, but it can also help to replace other peripherals and modules to free up even more space and get more done. Combining all of these components into one small DIN mounted unit, we provide the ability to promote hot swapping in the field, limiting costly technician time and troubleshooting.

Each component on the TS-7100-Z has been carefully chosen to ensure reliable operation in the field and maximum product lifespan for 10+ years. The fanless design of the TS-7100-Z paired with the low cost enclosure is able to withstand high vibration, debris, and a wide temperature range of -40 °C to 85 °C.

The TS-7100-Z took home the Embedded Computing Design's Best in Show Award at the embedded world trade fair in 2020.

Additional Features

  • NXP i.MX 6UltraLite 696 MHz ARM CPU with FPU
  • 512 MB RAM
  • 4 GB eMMC Flash Storage
  • 2 KB FRAM Storage
  • 802.11 b/g/n WiFi and Bluetooth BT4 LE Radio
  • 3" 18-bit, 320x240, 135dpi Resistive Touchscreen Display
  • TS-SILO Super Capacitor Power Reserve Solution
  • Preloaded Debian 10 "Buster" Distribution, Linux Kernel v4.9
  • 1x microSD Card Socket
  • 2x 10/100 Ethernet Ports
  • 2x USB Host Ports
  • 2x Serial Ports
  • 1x RS-485 Ports
  • 1x CAN Port
  • Industrial Temperature Range (-40 °C to 85 °C)

New Kid on the Block

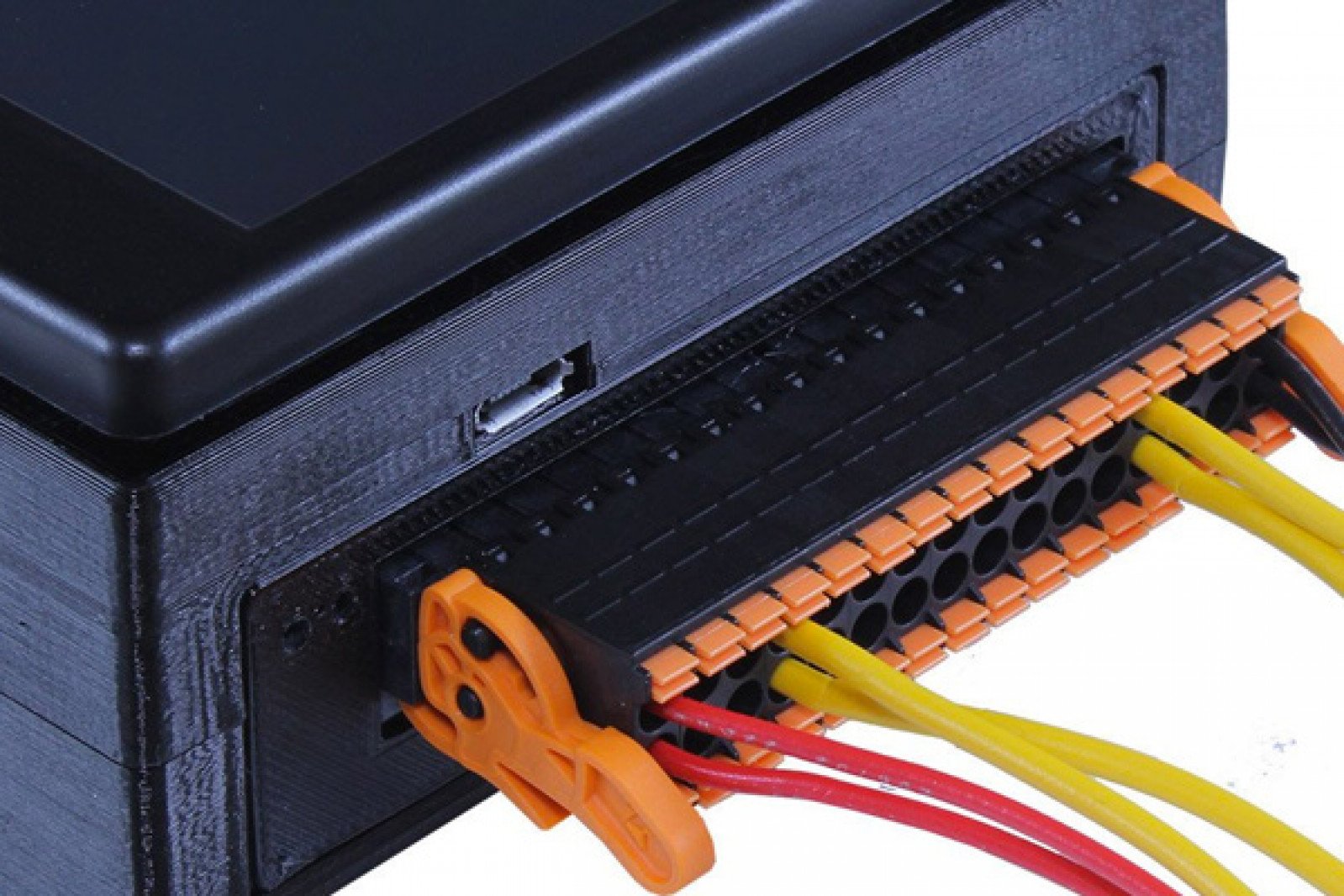

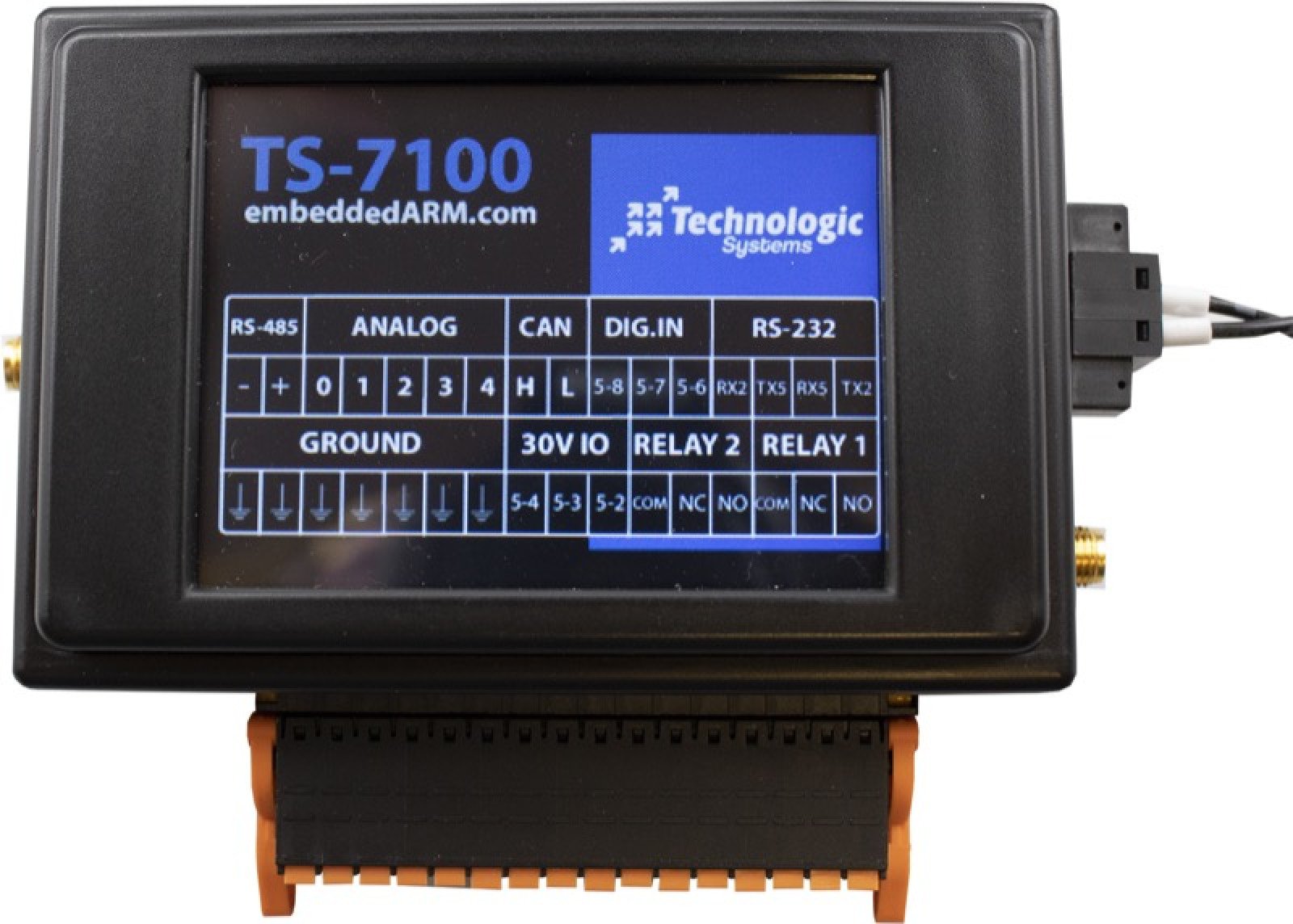

The TS-7100-Z comes with a robust RoHS compliant 32 position spring clamp connector. Terminal block screws are not necessary.

  • 2x Relays with NO, NC, and Common Contacts (2 A / 220 VAC)
  • 3x Digital Inputs (0-30 VDC)
  • 3x Digital Input and Output (sinks up to 700 mA)
  • 1x Digital Output (0-48 VDC from supplied power) or ...
    • ... 1x Analog Input (0-50 VDC)
  • 4x ADC Inputs (0-12 VDC or 4-20 mA; 0.1% reference) or ...
    • ... 4x Digital Input (Dry contact compatible)

The TS-7100-Z supports several DIO features that are found in industrial applications like HVAC and automation control, such as relays, 4-20 mA or 0-12 VDC analog inputs, dry contact switch compatible inputs, and outputs capable of sinking 700 mA. Furthermore, digital outputs have fast electronic circuit breakers for equipment protection.

Reliable Data Storage with TS-SILO and FRAM

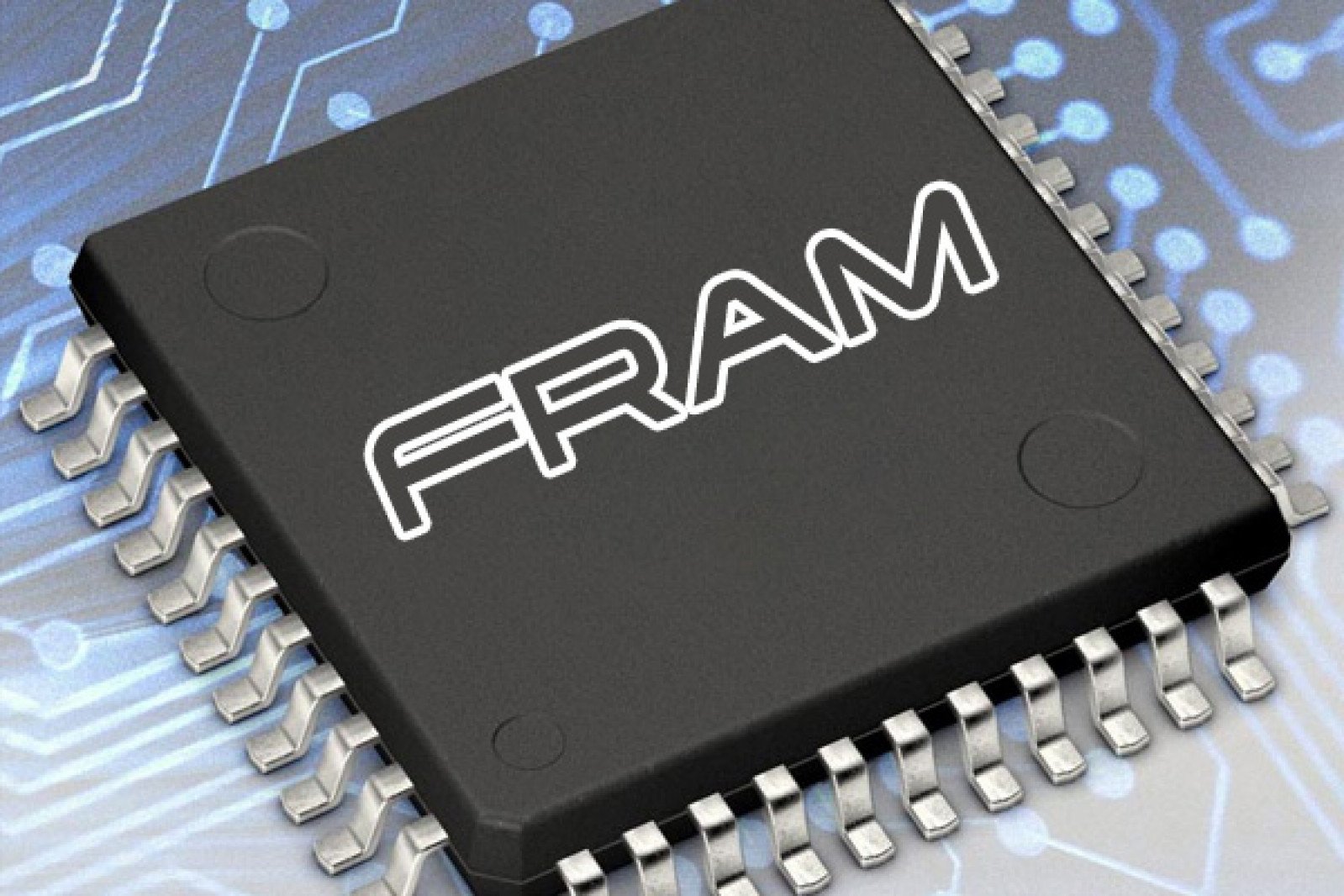

The TS-SILO power reserve ensures that there will never be data loss or corruption when there are unexpected interruptions in power. TS-SILO provides up to 30 seconds of operation to allow graceful system shutdown, protecting data stored on the onboard eMMC. Additionally, the TS-7100-Z integrates Ferroelectric RAM (FRAM or FeRAM ) which combines non-volatile data storage with incredibly high read/write endurance for the ultimate in reliability for heavy data logging applications.

Technologic Systems provides complete documentation for our mature products, including manuals, schematics, mechanical drawings, etc. The most recent documentation files are always made available through our website. If you don't find the documentation you are looking for, contact support for more information. Also, please make sure to visit our Embedded Systems Support webpage, our official documentation, and join our official Developers Forum.

Documentation
Block Diagram
Featured On
From the Blog:
Product Notices:
Subscribe to the Product Communication System (TS-PCS) for TS-7100-Z Notices
CPU
Architecture ARM
Part Number i.MX 6UltraLite
Vendor NXP
CPU Speed 696 MHz
Floating Point Unit Yes
CPU Cores (Max) 1x
Core Specs
Base Memory Capacity 512 MB
Storage
Base Flash Capacity 4 GB
Flash Type eMMC
FRAM 2 KB
Other
Battery-Backed Real Time Clock 1x
Serial Interfaces
RS-232 Ports 2x
RS-485 Ports 1x
Peripheral Interfaces
USB Host Ports 2x
General I/O
Analog to Digital Ports (ADC) 4x (0-12 VDC or 4-20 mA)
Relays 2x
Digital Input 6x (0-30VDC; Dry contact compatible)
Digital Output 4x (0-48VDC from Supply Voltage; 700mA sink)
Industrial Protocols
CAN Ports 1x
Precision Time Protocol (PTP) Yes
Networking
10/100 Ethernet Ports 2x
Physical
Operating Supply Voltage 8 VDC to 48 VDC
Fanless Temperature Range -40 °C to 85 °C
Graphics / HMI
Screen Diagonal Size 2.8"
Screen Resolution 320x240 (18-bit, 135dpi)
Radio Comms
Bluetooth Yes (BT4 LE)
WiFi Radio Yes (802.11 b/g/n)
Software
Linux Kernel Version 4.9
Debian Linux Buster (10.0)
TS-7100-Z Block Diagram
TS-7100-Z Block Diagram Image

(Download PDF version)

Product Configuration
Part Description Price
TS-7100-Z-SMN11I TS-7100-Z SBC with the i.MX6UL 696MHz ARM Cortex A7 512MB DDR3 RAM and 4GB eMMC Flash, with a variety of I/O and Cellular Socket (-40 to 85C) Pricing
TS-7100-Z-SMW12I TS-7100-Z SBC with the i.MX6UL 696MHz ARM Cortex A7 512MB DDR3 RAM and 4GB eMMC Flash, with a variety of I/O, Cellular Socket, WiFi/Bluetooth with u.FL Antenna Connector (-40 to 85C) Pricing
TS-7100-Z-SXW22I TS-7100-Z SBC with the i.MX6UL 696MHz ARM Cortex A7 1GB DDR3 RAM and 16GB eMMC Flash, with a variety of I/O, Cellular Socket, WiFi/Bluetooth with u.FL Antenna Connector, Accelerometer/Magnetometer (-40 to 85C) Pricing

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

TS-7100-Z-SMN11I TS-7100-Z-SMW12I TS-7100-Z-SXW22I
CPU Arch ARM
CPU Cores 1
CPU Speed 696 MHz
RAM 512 MBytes 1 GBytes
Onboard Storage 4 GBytes 16 GBytes
FRAM 2 kBytes
microSD Socket No
10/100 Ethernet 2
USB Host 2 (1 if NimbeLink/Digi XBee Socket used)
WiFi/Bluetooth -- WiFi 802.11 b/g/n, Bluetooth BLE
Other Wireless NimbeLink/Digi XBee Socket (Cellular or Wireless Mesh)
Video/LCD Available with Optional Enclosure: 3" 18-bit, 320x240, 135 dpi Resistive Touchscreen Display (Included withTS-ENC710-Z-1-LN & TS-ENC710-Z-1-LD)
Audio None
Console Interface Dedicated micro-USB device port and Optionally on DB9 w/ Jumper Installed
Accelerometer/Magnetometer -- Yes
Common Interfaces Battery Backed Real Time Clock, Terminal Block with: 2x Relays, 1x High Side I/O, 3x 30 V Output, 3x 30 V Inputs, 1x RS-485, 2x, RS-232, 1x CAN, 4x 0-12 V ADC/DIO or 4-20 mA
Input Voltage/Power 8 - 48 VDC
TS-SILO Support for ~20 seconds of power hold up in case of sudden power loss to safely shut down
Operating Temperature -40 °C to 85 °C
Standard Shipping OS Debian 10 (Buster) with the 4.9 series Linux Kernel
